Micro X-Ray Integrated Micro Focus Tube and Power Supply

MICROBOX 100kV INTEGRATED MICRO FOCUS TUBE AND POWER SUPPLY

The Microbox provides ultimate convenience in a compact design offering small focal spot with short FOD for optimal magnification, enabling clear 2D and 3D images at up to 100kV.

Lightbright 50W End Window X-Ray Tube

LIGHTBRIGHT END WINDOW X-RAY TUBE

The Lightbright is an end window X-Ray tube designed for customers that require maximum flux, short FOD, high current at low excitation voltages, and a wide beam angle. The large heat sink coupled with the nickel plated bronze body provides efficient heat transfer enabling high power operation. The integrated Mammoflex® HV cable and LV cables allow for easy connection to a standard HV power supply.

Aquachill and Windchill X-ray Source

AQUACHILL AND WINDCHILL ACTIVELY COOLED X-RAY SOURCES

The Aquachill and Windchill actively cooled X-ray sources are perfectly suited for inline X-ray inspection applications, with increased X-ray power enabling increased line speed and throughput. The higher flux output enables image acquisition times to reduce dramatically, allowing for faster and more accurate inspection of a wider range of materials.

Seeray X-ray Tube

SEERAY WATER COOLED X-RAY TUBE

Our SeeRay series is ideally suited for end users wanting higher power requirements but wanting a smaller package both in terms of dimensions and weight. The tube is fully radiation shielded, high voltage isolated and includes a high voltage cable and low voltage cable. The design includes direct anode cooling for fast stabilization time.

Micro X-Ray Mini Focus Packaged X-Ray Tube

MINI FOCUS PACKAGED X-RAY TUBE

Ideally suited for end users wanting a plug and play solution. These tubes are fully radiation shielded, high voltage isolated and include a high voltage cable as well as filament wires. The nickel plated bronze packaging provides radiation isolation as well as excellent thermal properties, enabling continuous operation, without compromise.

Micro X-Ray Silicon Encapsulated X-Ray Tube

SILICONE ENCAPSULATED X-RAY TUBE

For applications requiring less than 15 watts, these tubes incorporate a high voltage cable and filament wires. The silicon encapsulation provides electrostatic isolation, and improves stability. These tubes are a perfect choice for in-situ thickness gauging of thin, non-woven material, such as plastics, papers and metals.

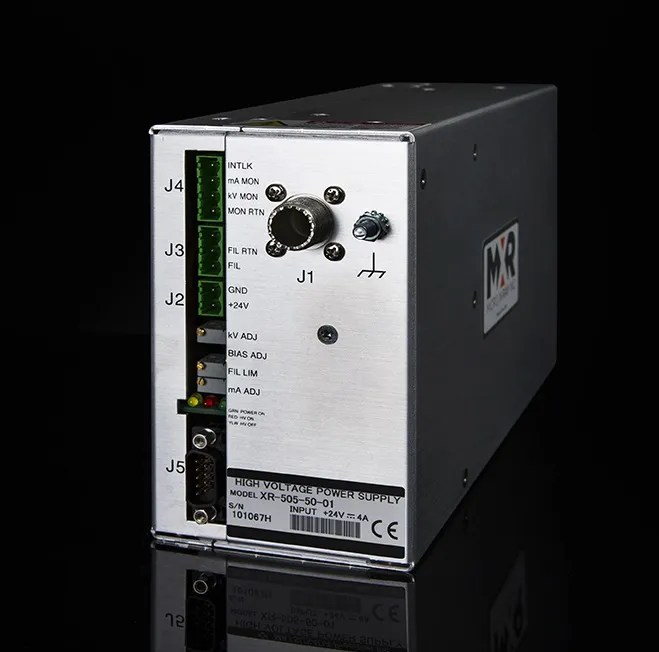

Micro Xray - Power Supplies

POWER SUPPLIES

We offer compatible, high voltage power supplies, tuned specifically for our tubes, ensuring true plug and play capability. The power supplies are available with a graphic user interface that can be operated with a standard desk-top or lap-top computer via USB, Ethernet or RS-232.
